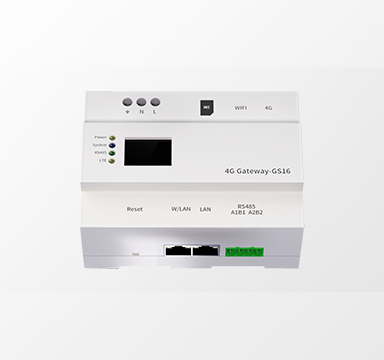

4G-DTU/ZM-GS16
Product Overview
This product is a low-cost wireless communication device built on the Cat.1 network, designed for remote data collection and transparent transmission. It is ideal for industrial IoT, environmental monitoring, smart device connectivity, and similar applications.
Product Features
- 1、1 This is a wireless communication device based on the Cat.1 network, designed for remote data collection and transparent transmission. It is suitable for applications such as industrial IoT, environmental monitoring, and smart device connectivity.
- 2、2: The device has 1 WAN ports, 1 LAN ports, and 2 RS485 ports, supporting multiple custom protocols.
- 3、3: Supports dual-SIM single standby (1 embedded SIM, 1 removable SIM) for enhanced reliability.
| Technical Specifications | |
| Operating Voltage | AC 20V 50Hz |
| Communication Interface | 1*WAN 10/100M, 1*LAN 10/100M, 2*RS485 |
| Connection method | Cat.1 |
| Communication Protocol | TCP/UDP/MQTT/HTTP |
| SIM card | Dual SIM, single standby; eSIM patch card / Micro SIM pop-out slot |
| Max Power Consumption | 5W |
| Operating Temperature | -40-80℃ |
| Environment Humidity | 5~95% (No Frost) |
| Weight | 0.5KG |
| Structure Parameters | |
| Housing | ABS material |
| Installation Method | DIN35mm Rail-Mounted |
| Ingress Protection Rating | IP4 |
| Device Dimensions | L: 126.4mm; W: 93mm; H: 57.6mm |
