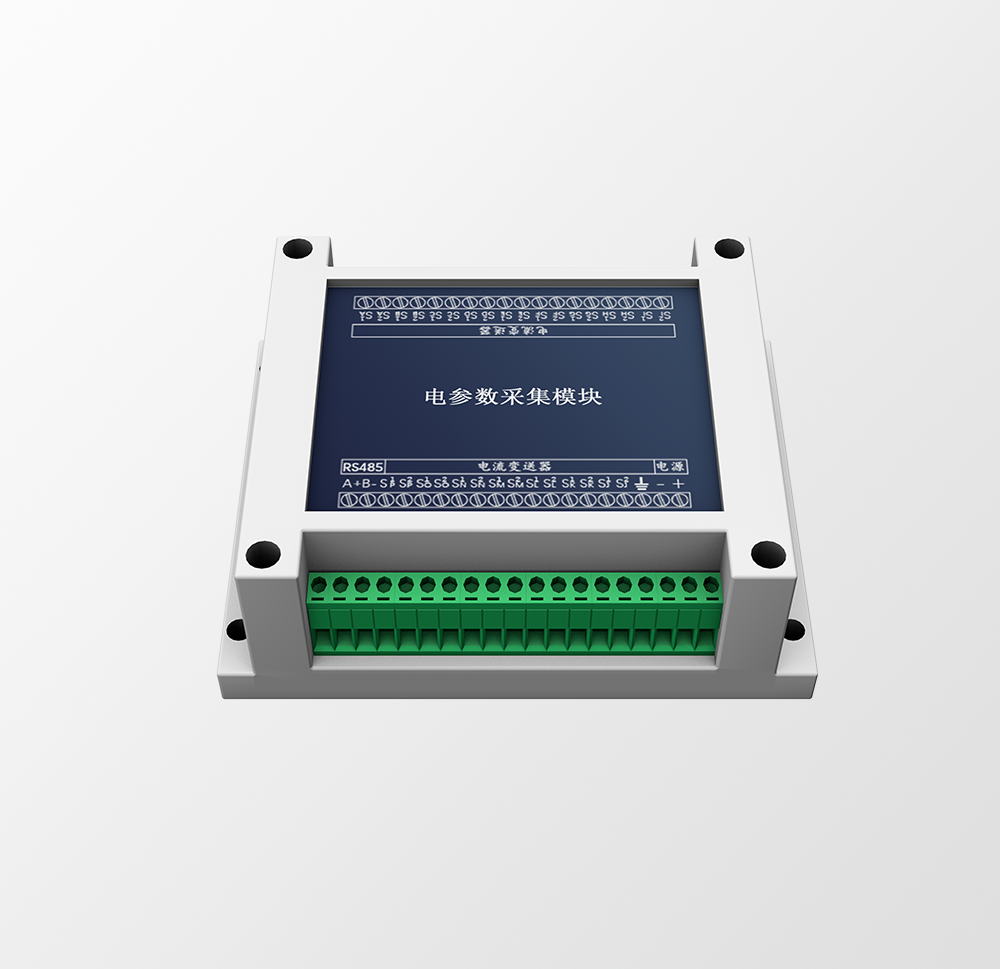

Power Parameter Acquisition Module / ZM-CJ16
Product Overview
This product is a high-precision AC current acquisition module, with each unit supporting 16 channels. It is widely used in industrial automation, energy management, and equipment monitoring.
Product Features
- 1、16 independent current acquisition channels for high-precision measurement.
- 2、Supports RMS true value calculation for more accurate measurements.
- 3、Supports RS-485 bus communication for multi-device networking.
- 4、Features overload and short-circuit protection.
- 5、Supports remote data retrieval and history query.
| Technical Specifications | |
| Number of Capture Channels | 16 way |
| Measurement Range | 0-100A |
| Measurement accuracy | ±0.5% |
| Operating Voltage | AC 10-220V |
| Communication Interface | RS-485 |
| Communication Protocol | MODBUS-RTU |
| Operating Temperature | -20°C to 60°C |
| Ingress Protection Rating | IP30 |
| Structure Parameters | |
| Housing Material | Flame Retardant ABS |
| Installation Method | DIN rail mounting |
| Device Dimensions | L:200mm*W:90mm*H:65mm |
| Wiring method | Screw terminal |
