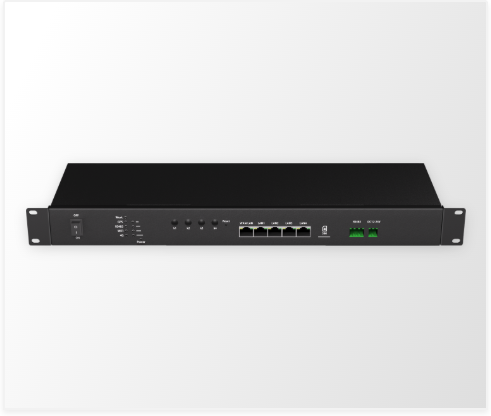

Edge Computing Gateway 19/ZM-GC15-19
Product Overview
The industrial-grade IoT node edge computing host features a high-performance embedded CPU with a clock speed up to 880MHz.
Product Features
- 1、Equipped with an industrial-grade, high-performance embedded CPU operating at up to 880MHz.
- 2、Supports multiple industrial and IoT protocols.
- 3、19-inch rack-mount design, compatible with standard server racks.
- 4、Supports edge computing and cloud collaboration.
| Technical Specifications | |
| Operating System | Embedded Linux Operating System |
| How to use | On-premises / Cloud |
| Communication Interface | 2*LAN port, 1*USB, 1*RS485 |
| Communication Protocol | TCP/UDP/MQTT/MODBUS/Art-net |
| Load Capacity | DMX sub-control: 64 units, Power module: 32 units |
| Sync Mode | NTP/GPS |
| Operating Voltage | AC20V |
| Storage medium | SSD Solid State Storage |
| Environment Parameters | |
| Installation Method | 19-inch rack |
| Operating Temperature | -30°C to 70°C |
| Humidity Range | 0% to 90% |
| Ingress Protection Rating | IP30 |
| Structure Parameters | |
| Housing Material | Premium electrolytic galvanized steel + powder coating |
| Surface Color | Black |
| Standard Attachment | Power cord, rack-mount kit |
| Device Dimensions | L: 485mm; W: 200mm;; H: 45mm |
