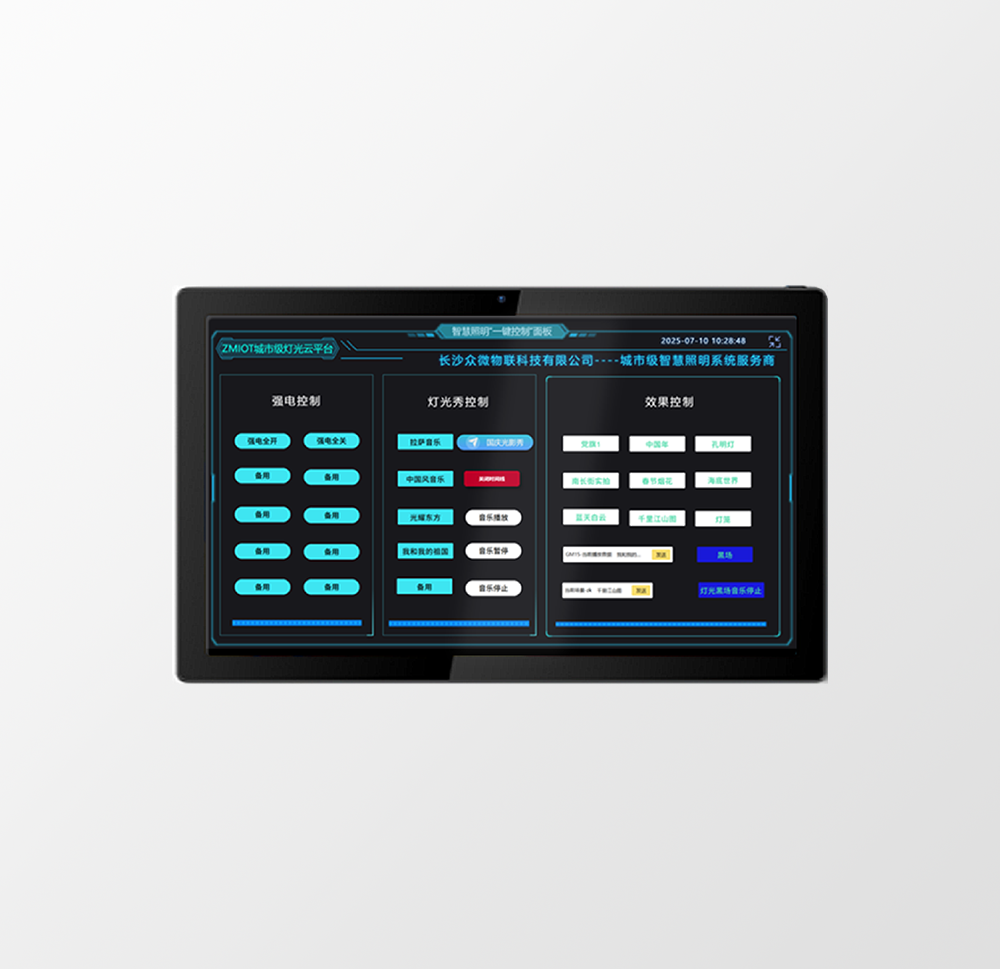

10-inch touch panel / ZM-PAN10
Product Overview
This industrial-grade 10.1-inch Android touchscreen is optimized for smart lighting control, automation management, and human-machine interface (HMI) applications. Featuring high-precision capacitive touch and the Android 13 operating system, it supports multi-protocol communication.
Product Features
- 1、10.1-inch HD IPS display with a resolution of 1280x800.
- 2、Android 13 system supports custom app development.
- 3、Supports multiple communication methods including RS-485, WiFi, and Ethernet.
- 4、Supports scene switching, scheduled tasks, and linked control.
- 5、Supports remote configuration, firmware updates, and data synchronization.
| Technical Specifications | |
| Screen Size | 10.1 inch |
| Screen Type | IPS Capacitive Touchscreen |
| Resolution | 1280x800 |
| Operating System | Android 13 |
| Operating Voltage | DC 12V |
| Communication Interface | RS-485/WiFi/Ethernet |
| Communication Protocol | MODBUS-RTU/TCP |
| Operating Temperature | -10°C to 50°C |
| Structure Parameters | |
| Housing Material | Aluminum Alloy + Tempered Glass |
| Installation Method | Wall-mounted / Built-in |
| Device Dimensions | L:260mm*W:170mm*H:25mm |
| Surface Color | Black |
