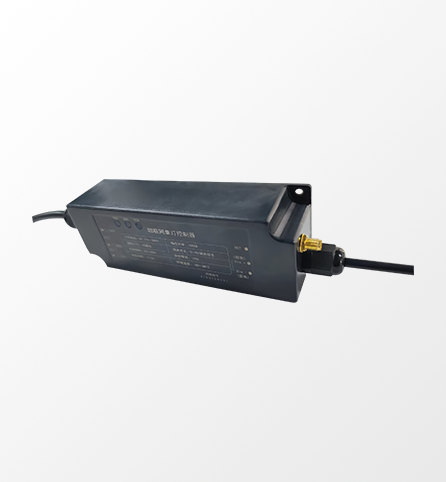

CAT1 Single-Light Controller / ZM-DK02

Product Overview

This product uses 4G Cat1 public network direct communication and includes current and voltage metering circuits to monitor the controller's load status in real time. This significantly reduces the workload for streetlight management teams and improves efficiency. Additionally, the single-lamp controller supports 0-10V/PWM dimming, ensuring precise lighting control and on-demand illumination—bright when needed, dim when not—while incorporating the latest energy-saving technologies. It can reduce overall urban streetlight electricity consumption by approximately 40% and lower maintenance costs by 60% through reduced labor and inspection expenses. This substantially enhances social energy conservation benefits.

Product Features

1: Cat1 Network Connectivity
2, Supports 0-10V/PWM Dimming
3 NTP Time Synchronization
4: Supports scheduled control
5 Indicator Status Feedback
6: Real-time Work Status Collection
7 Current, Voltage, and Power Acquisition
8, Built-in eSIM

Electrical Parameters	Relay Parameters	Single-channel, 250V/10A
	Voltage Range	AC 110-265V
	Frequency Range	50-60HZ
	Current range	0-2A
	Static Power	<2W
	Maximum Load Power	≤100W
Check Parameters	Voltage detection range	85~265V
	Current detection range	0-2A
	Data detection accuracy	≤1%
Features	Energy Statistics	Read battery level, clearable via command
	Report Error	Manual report, query reports
	Light Fixture Fault Alert	Fixture fault, power supply fault
	Line Alarm	Overvoltage alarm, undervoltage alarm, configurable alarm parameters
Communication Parameters	Communication Method	4G Cat. 1
	Communication Speed	Up to 1 Mbps (distance < 40 M), with a maximum range of 10 KM (speed < 5 Kbps)
	Number of connected nodes	A single system can support up to nearly 50000 endpoints.
Environment Parameters	Ambient temperature	-40~+85℃
	Relative Humidity	<95%
	IP Rating	IP65
Structure Parameters	Dimensions	L: 142mm; W: 51mm; H: 38mm
