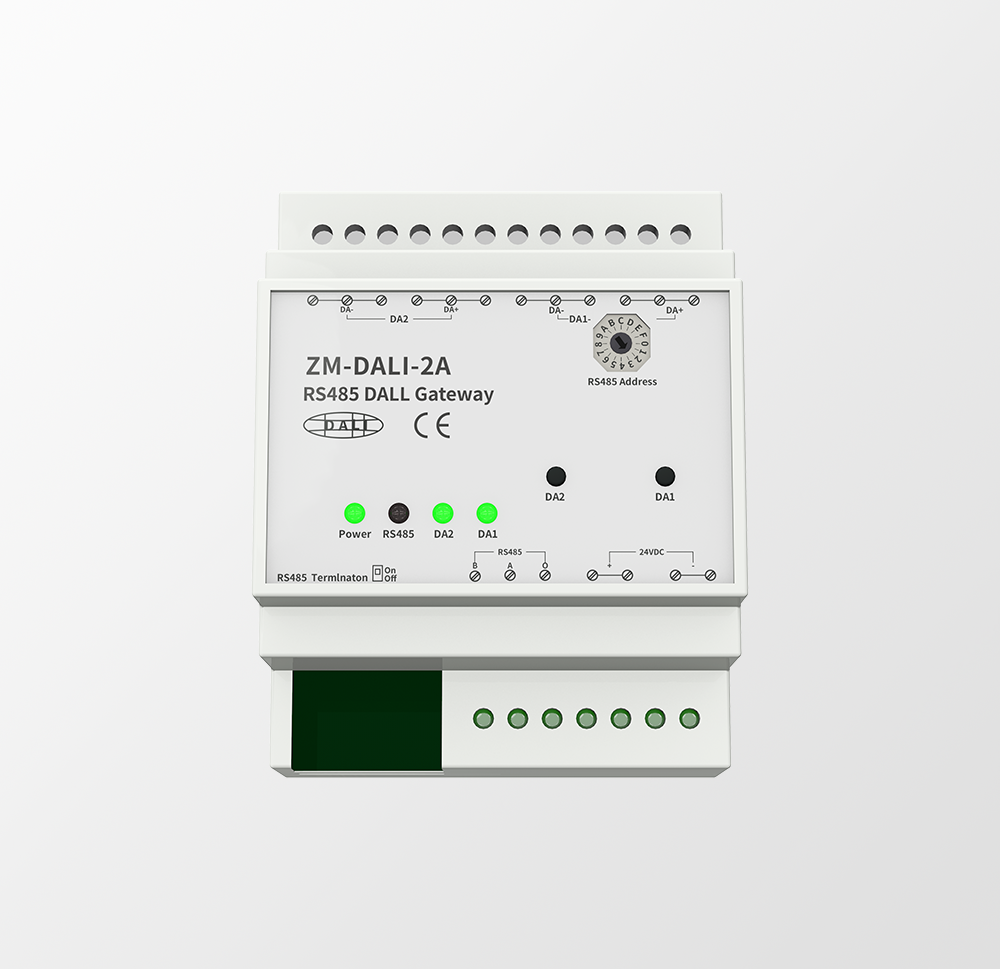

DALI Gateway /ZM-DALI-2A
Product Overview
The DALI Gateway is a professional smart lighting control device that supports DALI protocol devices, enabling dimming and scene control for DALI-compatible fixtures. Ideal for commercial and office lighting applications.
Product Features
- 1、Supports DALI-2 protocol and is compatible with mainstream DALI luminaires.
- 2、Supports RS-485 bus communication for integration with building automation systems.
- 3、Supports dimming, color temperature adjustment, and scene control.
- 4、Supports scheduled tasks and linked controls.
- 5、Features state feedback and fault detection.
| Technical Specifications | |
| Protocol Type | DALI-2 |
| Load Capacity | 64 DALI device(s) |
| Operating Voltage | AC 10-220V |
| Communication Interface | RS-485 |
| Communication Protocol | MODBUS-RTU |
| Operating Temperature | -20°C to 60°C |
| Ingress Protection Rating | IP30 |
| Structure Parameters | |
| Housing Material | Flame Retardant ABS |
| Installation Method | DIN rail mounting |
| Device Dimensions | L:120mm*W:90mm*H:65mm |
| Wiring method | Screw terminal |
